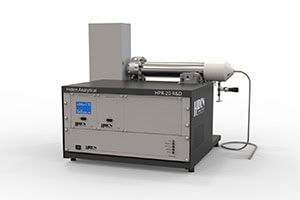

A specialist gas analysis system for advanced research
Measures the concentration of gases and vapours in real time
| Mass range |
200, 300 or 510 amu |
| Minimum detectable concentration |
5 PPB |
| Maximum detectable concentration |
100% |
| Sampling inlet |
Heated flexible silica capillary |
| Standard capillary length |
2 meters |
| Sample inlet pressure (Standard) |
100 mbar to 2 bar abs |
| Sample inlet pressure (Optional) |
Up to 30 Bar |
| Response time to gas concentration change |
300 milliseconds |
| Fast measurement speed |
Up to 500 measurements per second |
| Sample flow required (Standard) |
16 atm cc/min |
| Sample flow required (Optional) |
< 1 atm cc/min to > 20 atm cc/min |
| Corrosive gas sampling options |
Yes |

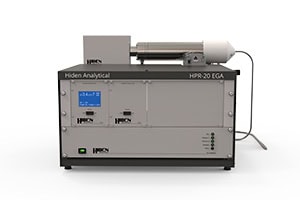

A compact bench-top gas analysis system for evolved gas analysis in TGA-MS
Measures evolved gases and vapours from thermo gravimetric analysers (TGA)
| Mass range |
200 or 300 amu |
| Minimum detectable concentration |
100 PPB |
| Response time to gas concentration change |
300 milliseconds |
| High capacity vacuum pumping |
Yes |
| Sample inlet |
Heated flexible silica capillary |
| Standard capillary length |
2 meters |
| TA-MS adaptors/interfaces to suit most TGA systems |
Yes |
| Carrier gas |
Helium or Argon |
| Sample flow required (Standard) |
16 atm cc/min |
| Sample flow required (Optional) |
Options for < 1 atm cc/min to > 20 atm cc/min |
| Fast measurement speed |
Up to 500 measurements per second |
| Dedicated evolved gas analysis software |
Yes |
| Designed for TGA-MS |
Yes |

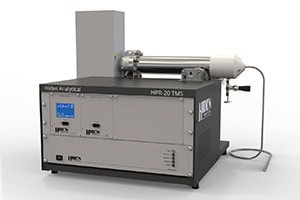

A specialist gas analysis system for fast event transient analysis
Measures the concentration of gases and vapours from low PPM to high % levels in < 0.2 seconds.
| Mass range |
200 or 300 amu |
| Minimum detectable concentration |
5 PPB |
| Maximum detectable concentration |
100% |
| Sample inlet |
Heated flexible silica capillary |
| Standard capillary length |
0.9 meters |
| Sample inlet pressure |
100 mbar to 2 bar abs |
| Digital pulse ion counting detector |
7 decade continuous log scale |
| Response time to gas concentration change |
150 milliseconds |
| Response time to 5 decade change |
< 200 ms |
| Fast measurement speed |
Up to 500 measurements per second |
| Sample flow required (Standard) |
16 atm cc/min |
| Sample flow required (Optional) |
Options for < 1 atm cc/min to > 20 atm cc/min |
| Corrosive gas sampling options |
Yes |
